Plate

Common thickness ranges from 6 to 400 mm, with the maximum thickness of 800 mm, meeting the full range of customer needs.

The matching intermediate billet water-penetrating device can effectively handle rolling under differential temperature. Resulting the design of no niobium ship plate, this design can reduce alloy costs significantly.

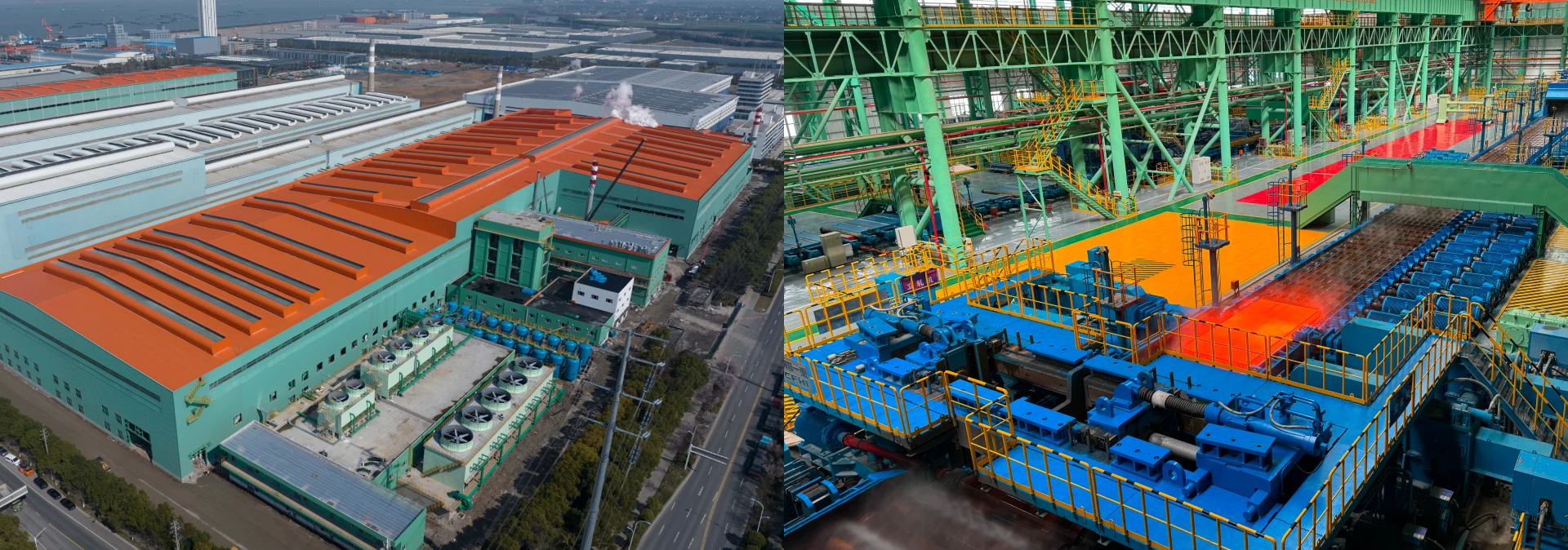

The maximum opening of the four-roll main rolling mill is 1100mm, with the 9000 tons maximum rolling force, 1210kn.m torque, and the maximum reduction of a single pass is 60mm. The rolling capacity matches the conventional 5000 mm rolling mill, and it is equipped with a separate vertical rolling mill with the industry's largest rolling force of 800 tons. The core deformation capacity and grain refinement of the steel plate are significantly better than other manufacturers.

The water volume/hour of the DQ+ACC cooling system reaches 9,000+9,000 cubic meters, which is the largest volume in the industry, and the cooling system is running with online temperature compensation technology.

The entire production line is intelligently controlled and fully automatic. The ACC entrance is equipped with an advanced pre-straightening machine, and the hydraulic system adopts full servo drive.
